Performance Highlights
Turnaround Time
Dimensions
Weight
Fixed: 4,110 lbs or Adjustable: 4,330 lbs
Lifespan
Capacity
22,000 lb.
Performance Highlights
Style
Turnaround Time
Dimensions
Weight
Fixed: 4,110 lbs or Adjustable: 4,330 lbs
Payload
Lifespan
Lift/Dump
Capacity
22,000 lb.
Warranty
1-Year Product Warranty
1-Year Workmanship Warranty
GVW Range
25,000 to 35,000 lbs
Hook Height
Fixed: 53.88″ or Adjustable: 53.88″ or 61.75″
Optimum Body Length
16′ – 18′
Potential Body Length
14′ – 20′
Cab-Axle) Dimensions (Single Axle)
142″ – 160″
Cab-Trunnion Dimensions (Tandem Axle)
134″ – 146″
Features
High-capacity lift capability for demanding applications
Powder-coated finish for corrosion resistance and longevity
Robust hydraulic performance for smooth operations
Engineered for consistent performance in frequent cycles
Optimized load geometry for controlled load handling
Description

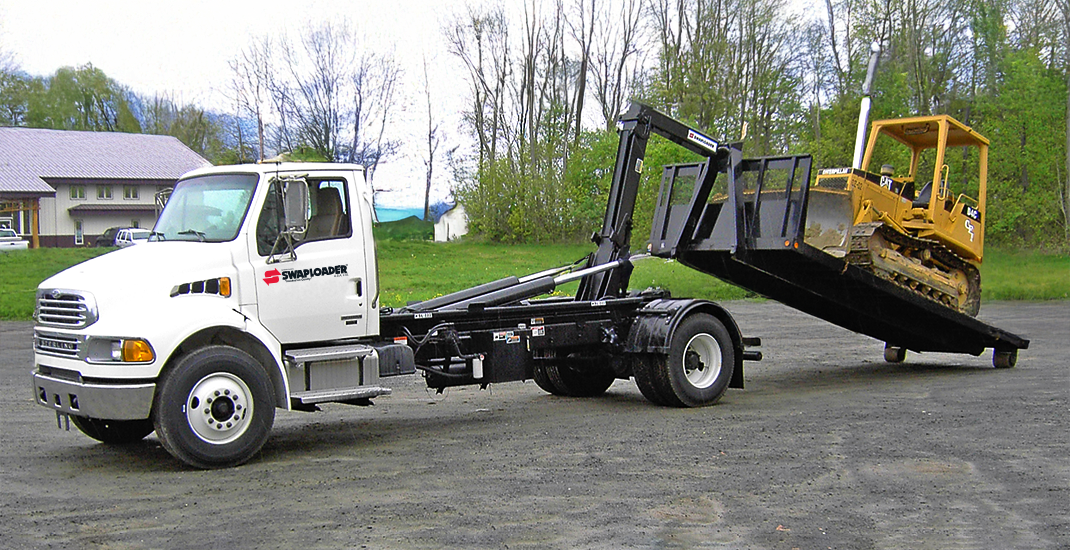

SwapLoader SL-222 Hooklift System
The SwapLoader SL-222 is a 22,000 lb class light-duty hooklift system designed for truck applications that require high lifting capability in a more compact configuration. Positioned at the upper end of the 22,000 lb range, the SL-222 delivers strong lift and dump performance while accommodating shorter optimum body lengths and tighter chassis layouts. Its rugged structural construction and reliable hydraulic system support smooth, controlled operation across frequent daily cycles.
Engineered with balanced hoist geometry and reinforced components, the SL-222 is well suited for operators who routinely handle heavier loads but must work within constraints related to truck length, axle placement, or overall vehicle footprint.
How the SL-222 Compares Within the SwapLoader Lineup
Compared to the SL-220 (same capacity, alternate configuration):
The SL-220 and SL-222 share the same 22,000 lb rated lift capacity, but differ in how that capacity is packaged. The SL-220 is optimized for longer body lengths and extended truck configurations, while the SL-222 is designed around shorter optimum body lengths and more compact chassis setups. Performance and capacity remain the same between the two; the deciding factor is body length requirements and truck layout, not lifting strength.
Compared to the SL-240 (higher-capacity model):
The SL-240 steps up to a 24,000 lb rated lift capacity, providing an additional 2,000 lb of lifting headroom over the SL-222. This increase offers greater margin for heavier loads and reduced strain when operating near maximum capacity. While the SL-222 is a strong option for users whose loads fall comfortably within the 22,000 lb range, the SL-240 is better suited for operators who consistently approach or exceed that threshold and require additional lifting capacity.
HIWASTE MFG is an official distributor for SwapLoader products in Hawaii, providing local access and support for genuine hooklift systems. This listing is for the SwapLoader SL-222 hooklift system only and does not include the truck chassis. Installation services are available on Oahu, Hawaii to help mount the SL-222 onto an existing compatible truck.
