1-Year
Workmanship Warranty
warranty included
SL-160
Hooklift system only.
Truck chassis and pictured equipment not included.

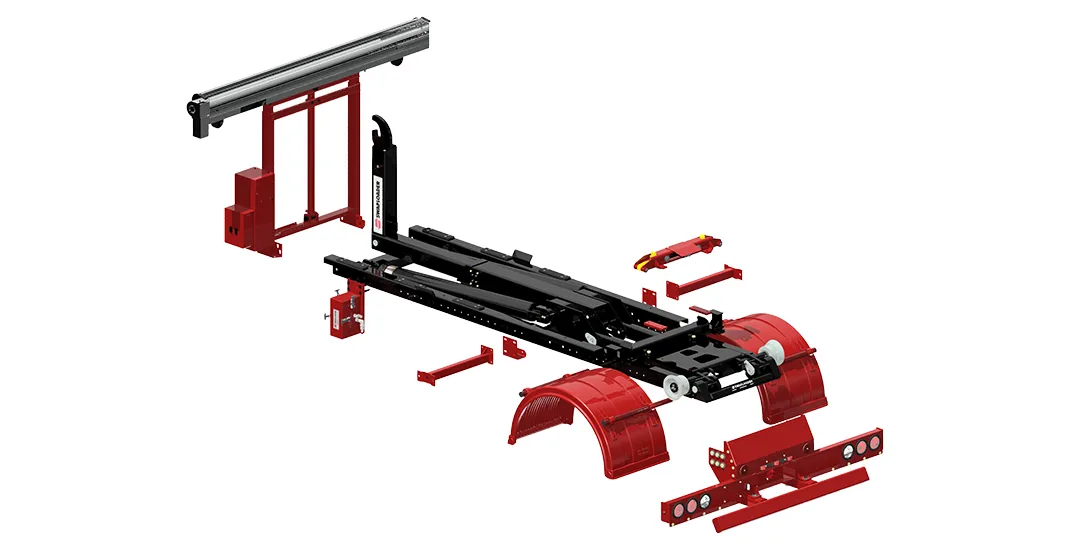

Additional options may be shown.
In Stock
Low STock. only
available.
out of Stock
Performance Highlights
Turnaround Time
Dimensions
Weight
Fixed: 2,300 lbs or Adjustable: 2,450 lbs
Lifespan
Capacity
16,000 lb.
Performance Highlights
Style
Turnaround Time
Dimensions
Weight
Fixed: 2,300 lbs or Adjustable: 2,450 lbs
Payload
Lifespan
Lift/Dump
Capacity
16,000 lb.
Warranty
1-Year Product Warranty
1-Year Workmanship Warranty
GVW Range
18,000 to 26,000 lbs
Hook Height
Fixed: 35 5/8″ or Adjustable: 35 5/8″ or 53 7/8″
Optimum Body Length
12′ – 14′
Potential Body Length
10′ – 15′
Cab-Axle) Dimensions (Single Axle)
108″ – 120″
Cab-Trunnion Dimensions (Tandem Axle)
Features
Increased lift capacity for mid-range load demands
Powder-coated steel finish for corrosion resistance
Robust hydraulic performance for smooth operations
Engineered for consistent performance in frequent cycles
Balanced load handling geometry for controlled movement
Description

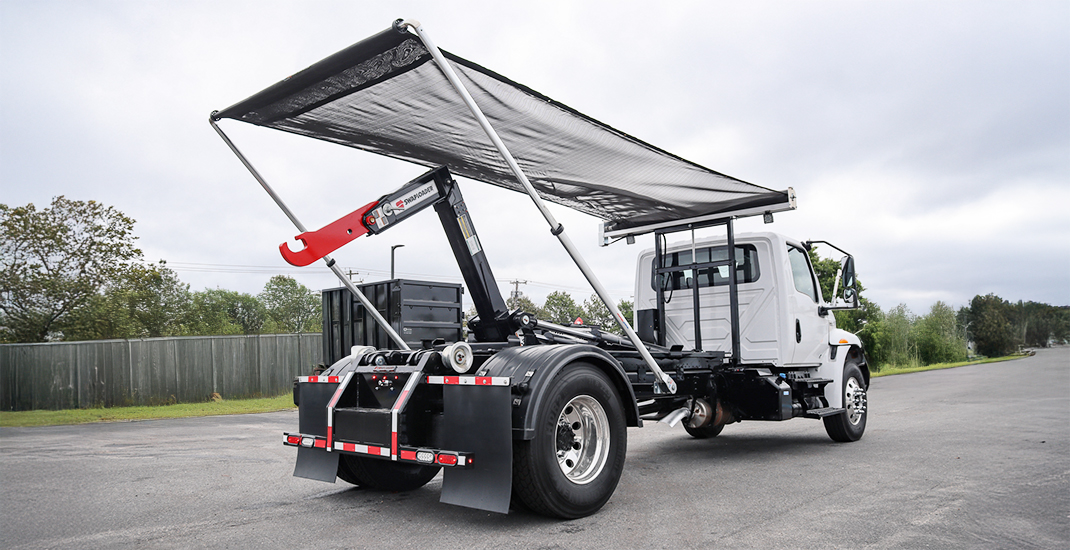

SwapLoader SL-160 Hooklift System
The SwapLoader SL-160 is a 16,000 lb class light-duty hooklift system designed for truck applications that require a clear increase in lift and dump capability over entry-level models. Positioned above the 11,000–12,000 lb class, the SL-160 delivers stronger load handling and improved durability while remaining within the light-duty hooklift category. Its robust structural design and dependable hydraulic system support smooth, controlled operation across frequent daily cycles.
The SL-160 is well suited for operators who routinely handle heavier loads than 100-Series systems are designed for, but who do not yet require the additional capacity of 20,000 lb class hooklift models.
How the SL-160 Compares Within the SwapLoader Lineup
Compared to the SL-110 and SL-112 (lower-capacity models):
The SL-110 and SL-112 fall within the 11,000–12,000 lb class, while the SL-160 increases rated lift capacity to 16,000 lb, providing an additional 4,000–5,000 lb of lifting margin. This step up allows the SL-160 to handle heavier payloads with less operating strain and makes it a better choice for users whose loads consistently exceed the limits of smaller light-duty systems.
Compared to the SL-212 (higher-capacity model):
The SL-212 steps up to a 20,000 lb rated lift capacity, offering an additional 4,000 lb of headroom over the SL-160. This increase is intended for operators who regularly approach the upper limits of the 16,000 lb range or who require greater lifting endurance. The SL-160 fills the gap between entry-level and higher-capacity systems, providing a balanced solution for users who need more capability without moving into the next capacity class.
HIWASTE MFG is an official distributor for SwapLoader products in Hawaii, providing local access and support for genuine hooklift systems. This listing is for the SwapLoader SL-160 hooklift system only and does not include the truck chassis. Installation services are available on Oahu to help integrate the SL-160 onto an existing compatible truck.
Scroll for more information
$ 27,948
