1-Year
Workmanship Warranty
warranty included
Outrigger Pad
Hooklift system only.
Truck chassis and pictured equipment not included.
Additional options may be shown.
In Stock
Low STock. only
available.
out of Stock
Performance Highlights
Turnaround Time
Dimensions
24" x 24" or 30" x 30", 2" Thick
Weight
41 lbs (24") / 64 lbs (30")
Lifespan
Capacity
33 Tons (24") / 50 Tons (30")
Performance Highlights
Style
Virgin UHMWPE, Textured
Turnaround Time
Dimensions
24" x 24" or 30" x 30", 2" Thick
Package Dimensions
Weight
41 lbs (24") / 64 lbs (30")
Payload
Lifespan
Lift/Dump
Capacity
33 Tons (24") / 50 Tons (30")
Wind Load
Warranty
1-Year Product Warranty
1-Year Workmanship Warranty
GVW Range
Hook Height
Optimum Body Length
Potential Body Length
Cab-Axle) Dimensions (Single Axle)
Cab-Trunnion Dimensions (Tandem Axle)
Features
Up to 50-ton maximum vertical load
2-inch thick virgin UHMWPE, textured surface
Rope carrying handles
Stabilizes cranes, boom trucks, and lifts
Protects surfaces under containers and dumpsters
Description
Outrigger Pads for Sale in Hawaii
Our heavy-duty outrigger pads for sale in Hawaii, also called crane pads, give cranes, boom trucks, lifts, and other equipment a stable support surface.
They're also used under shipping containers and dumpsters to protect surfaces from damage, prevent sinking, or raise them off the ground.
Choosing a Size
- 24" x 24" x 2": Maximum vertical load 33 tons. Recommended for 23-25-ton cranes and medium-sized concrete pump trucks. Covers 4 square feet, weighs 41 lbs.
- 30" x 30" x 2": Maximum vertical load 50 tons. Recommended for 50-70-ton cranes and medium-sized concrete pump trucks. Covers 6.25 square feet, weighs 64 lbs.
Safety Notice
For maximum vertical load, use firm, flat ground with the outrigger centered on the pad. Always confirm the required pad area using the equipment's maximum outrigger reaction and the ground-bearing capacity.
Material

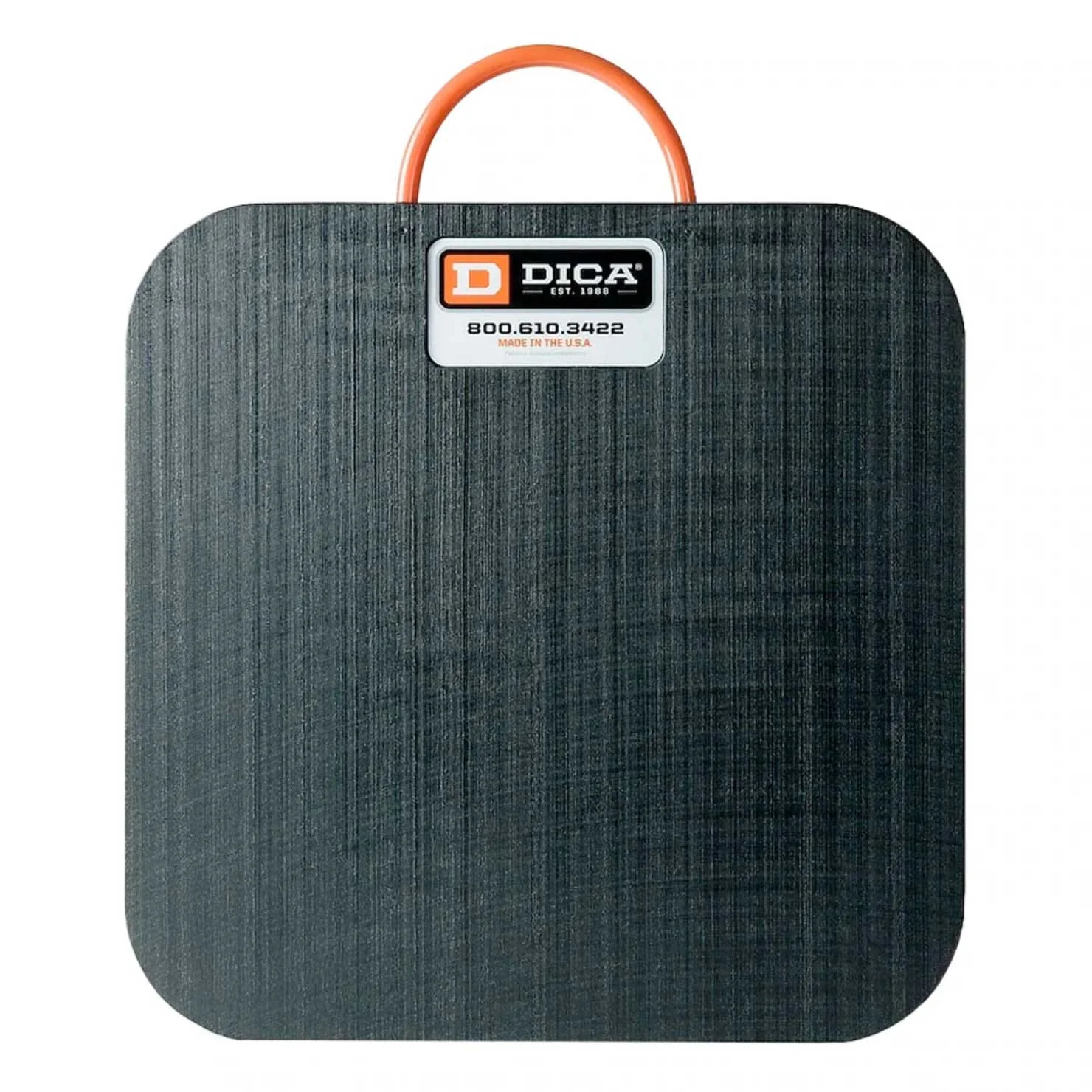

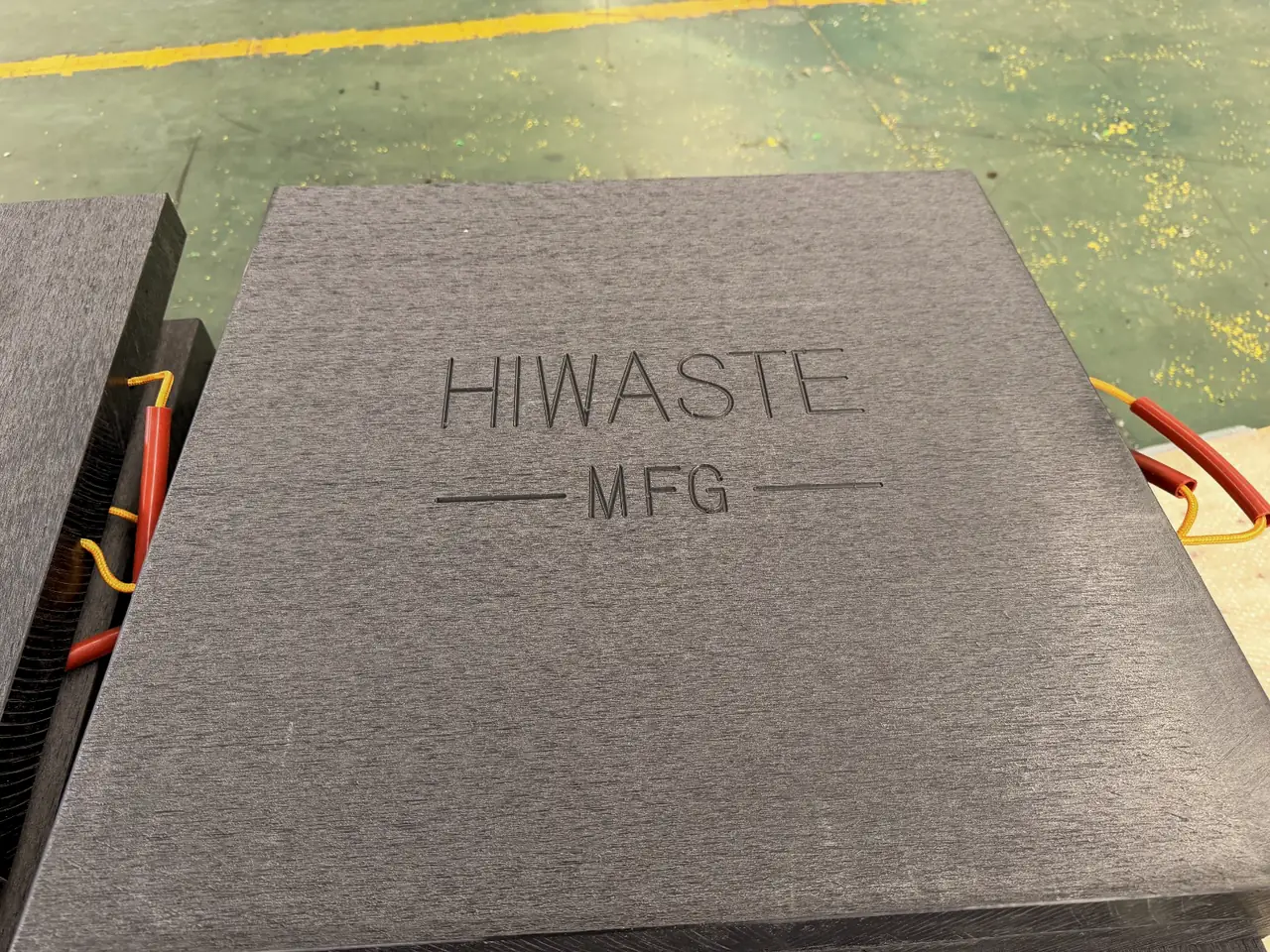

Each pad is made from virgin UHMWPE (ultra-high-molecular-weight polyethylene), 2" thick with a textured surface and rope carrying handles.
Specifications
- Sizes: 24" x 24" or 30" x 30"
- Thickness: 2"
- Maximum vertical load: 33 tons (24") or 50 tons (30")
- Weight: 41 lbs (24") or 64 lbs (30")
- Material: Virgin UHMWPE
- Color: Black
- Surface: Textured
- Handles: Rope carrying handles

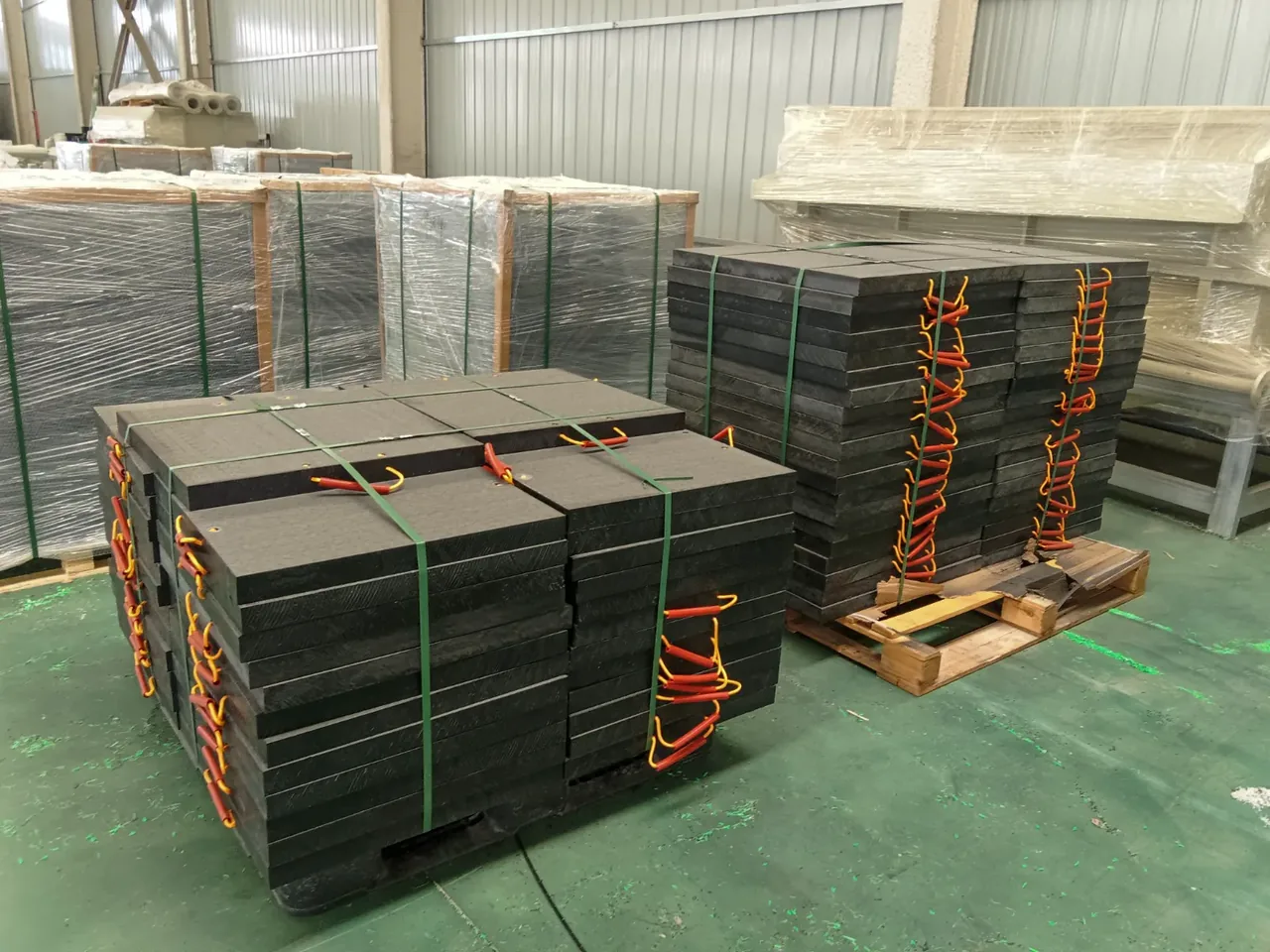

Outrigger pads are sold individually, so you can order exactly the number you need.
Available for pickup at our yard in Kaka'ako, Honolulu, with delivery anywhere on Oahu and shipping to Maui, the Big Island (Hilo and Kona), Kauai, Molokai, Lanai, Guam and American Samoa.
