3D Mobile Hydraulic Welding Table
Hooklift system only.
Truck chassis and pictured equipment not included.
Additional options may be shown.
In Stock
Low STock. only
available.
out of Stock
Performance Highlights
Turnaround Time
Dimensions
47-1/4" Long x 31-1/2" Wide
Weight
Lifespan
Capacity
1,650 lbs
Performance Highlights
Style
Nitrided S355 Steel, D16 Holes
Turnaround Time
Dimensions
47-1/4" Long x 31-1/2" Wide
Package Dimensions
Weight
Payload
Lifespan
Lift/Dump
Capacity
1,650 lbs
Wind Load
Warranty
1-Year Product Warranty
1-Year Workmanship Warranty
GVW Range
Hook Height
Optimum Body Length
Potential Body Length
Cab-Axle) Dimensions (Single Axle)
Cab-Trunnion Dimensions (Tandem Axle)
Features
Hydraulic height adjustment, 18 to 37-1/2 inches
1,650 lb load capacity
Nitrided S355 steel resists wear and scratches
16 mm (D16) holes for standard fixtures
Mobile design moves easily around the shop
Description

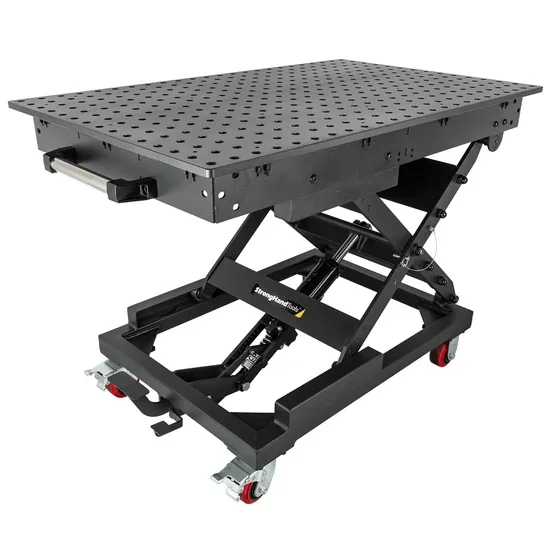

3D Mobile Hydraulic Welding Table for Sale in Hawaii
Our 3D mobile hydraulic welding table for sale in Hawaii is a heavy-duty mobile table with hydraulic height adjustment for easier positioning and fabrication.
Hydraulic Height Adjustment
The hydraulic lift raises and lowers the tabletop from 18" to 37-1/2", 19-1/2" of travel, so you can set your work at the right height for the job. The table carries up to 1,650 lbs.
Nitrided Steel Tabletop
The 47-1/4" x 31-1/2" top is 1/2" thick S355 structural steel, nitrided (a surface-hardening treatment) for improved wear and scratch resistance. Its 16 mm holes accept standard D16 clamps and fixtures.
Mobile Design
The mobile hydraulic lift base lets you move the table around the shop.
Specifications
- Load capacity: 1,650 lbs
- Table size: 47-1/4" L x 31-1/2" W x 2" H
- Tabletop thickness: 1/2"
- Hole diameter: 16 mm (approx. 5/8")
- Height range: 18" to 37-1/2"
- Material: S355 steel
- Finish: Nitrided
- Design: Mobile hydraulic lift
Pair it with our D16 clamp and fixturing kits for a complete fixturing setup.
Available for pickup at our yard in Kaka'ako, Honolulu, with delivery anywhere on Oahu and shipping to Maui, the Big Island (Hilo and Kona), Kauai, Molokai, Lanai, Guam and American Samoa.
